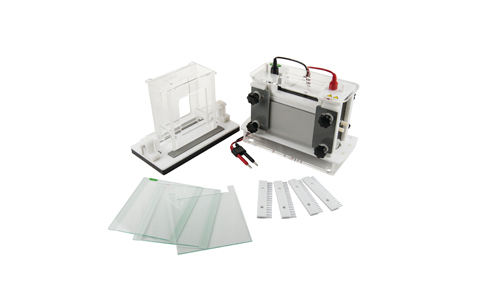

Vertical Electrophoresis Tank YR03433

Manufacturer: Kalstein

Description

Vertical gel electrophoresis is a more complex set-up compared to horizontal gel system. Researchers normally use this system to separate proteins instead of nucleic acids. However, before you separate proteins, you need to disrupt the quaternary structure of proteins into the linear strand

Features
  • Intended for protein purification and analysis, ideal for the dimensional electrophoresis, DGGE and preparative gel electrophoresis.
  • Equipped with special processing technology aluminums plates, effectively guaranteed the heat dissipation more even, holding stable pH during electrophoresis running.
  • Non-proliferation electric field influence, guaranteed  the electrophoresis strip more clear and straight. Modular double hinged core cassettes, matched with the basing gel caster, ensuring the whole operation process more convenient.
  • Retractable connectors compatible with most major power supplies.
  • For the temperature control, YR03433 can be connected with a outer constant temperature circulator.
  • Safe operation design, power can be cut off automatically when remove the lid.
Model YR03433
Gel Size(W×L)mm 120×145
Gel thickness 1,1.5(mm)
Comb wells 16, 23
Gel capacity 2
Buffer requirement 1200(ml)



Additional information

Weight 10,5 kg
Dimensions 39 × 36 × 22 cm
