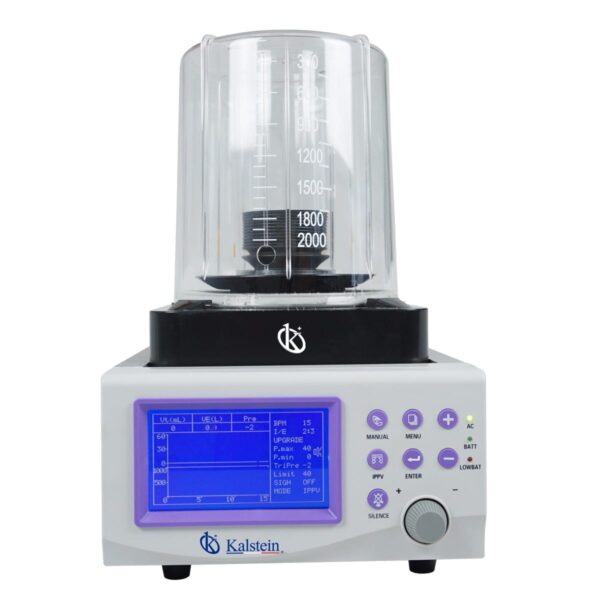

Veterinary Anesthesia Ventilator YR06102

ManufacturerKalstein

Product Description

Mechanical ventilation is a way of providing respiratory support for animals who are unable to maintain ventilation or oxygenation on their own. It is used for a wide variety of conditions. Mechanical ventilation does not cure any disease, but it does support lung function to allow time to treat the underlying problem.

Features
  • Respiration Mode: IPPV, SIMV, Manual
  • Waveform: P-t (Pressure-time), V-t (Volume-time)
  • Monitoring Parameters: TV (tidal volume), MV (minute ventilation), AP (airway pressure)
Technical Specifications
Model YR06102
Respiration mode IPPV, SIMV, MANUAL
Display 5.5′ SNT screen
Waveform P-t, V-t
Tidal volume 0,50ml~1600ml
Respiratory frequency 1 to 65 BPM
I:E ratio 8:1~1:8
Alarm parameters High pressure alarm,Low pressure alarm,O2 source lost alarm ,AC power lost alarm
High Pressure alarm limit 20~60cmH2O
Low Pressure alarm Limit 0~20cmH2O
Monitor Parameters Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E ratio
Safety valve pressure limit 6Kpa

Additional Information

Weight 12 kg
Dimensions 42 × 36 × 54 cm
