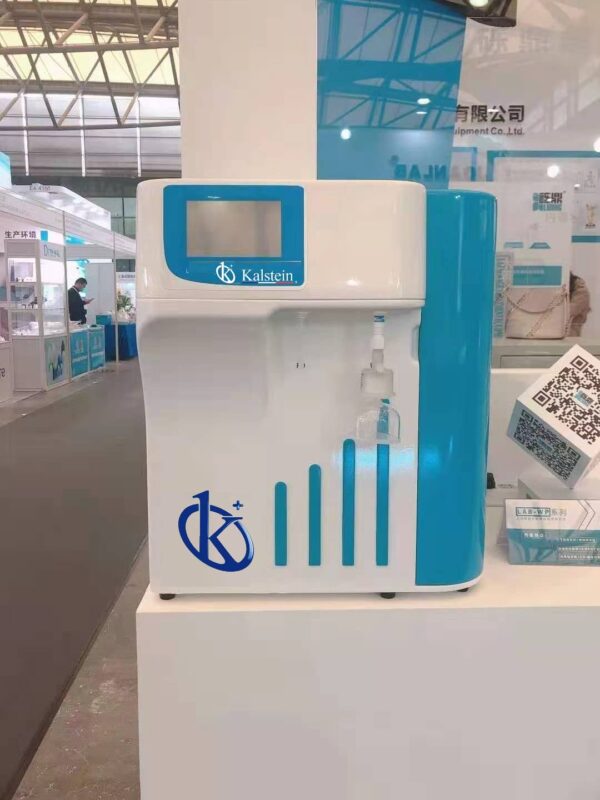

Water Purification System YR55 / YR55-3

Manufacturer: Kalstein

Description

Atomic absorption/emission spectroscopy, mass spectrum, TOC detection, environmental monitoring, biochip development, trace organic matter analysis

Product Features

  • Colored touched screen, humanized operation interface make users completely monitor controller’s working status and real-time data.
  • ABS engineering plastic case, powder coating technology, with water quality and quantity upgrading function, self-priming door.
  • Type U Korean quick-insert filters, used imported filtering materials.
  • Upgraded self-cleaning filter which with design of built-in 10’’ 10μm stainless steel filter mesh and silicone soft scraping, it can clean anytime, perfectly replace PP cotton filter, no need exchange.
  • Long-acting KDF filter whose adsorption efficiency and lifetime are more than 10times as equal quantity activated carbon filter’s, this avoid frequent filter replacement.
  • Imported UF ultra filtration column ensure meet request for removing pyrogen and RNA.
  • Built-in pressure tank which has inner pouch whose material is anti-bacteria and it is transparent, the inner pouch can be changed anytime.
  • Inbuilt feed water pressure test gauge to real time monitor tap water pressure and filters blocking.
  • Lifetime of PP cotton, activated carbon filter, RO membrane and ultra purification columns can be set to display the elapsed&rest time of consumables. Automatic reminder for filter replacement to avoid water quality decreasing.
  • Feed water, RO and UP water three ways water quality sensor and five ways switches signal are accessed integrated, with functions of timing quantitative water taking.
  • Equipped with USB Host interface, it supports data export function of historical alarm record and historical water intake record.Ø Low-voltage 24VDC is used as the main power supply, which meets the safety regulations and meets the requirements of humid environment, and will not cause personal injury.
  •  Can be with inner circulation system to ensure water quality keep at the highest level. ( optional)

Technical Specification

Model YR55 YR55-1 YR55-2 YR55-3
Inlet water source Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed 1.5-2L/min ( with pressure barrel)
Machine capacity 15 L/H 15 L/H 15 L/H 15 L/H
Output
Water quality
RO water: Conductivity 1-5 μS/cm (ASTM type III water)
UP water: resistivity 18.25MΩ.cm@25°C (ASTM type I water)
TOC: <3 ppb, particles (>0.22 um) <1/ml, microorganism <1 cfu/ml
Total organic carbon (TOC) <10 ppb <3 ppb
Pyrogen (endotoxin) N/A < 0.001 Eu/ml N/A < 0.001 Eu/ml
Ribonuclease (RNases) N/A <1pg/ml N/A <1pg/ml
Deoxyribonucleases N/A <5pg/ml N/A <5pg/ml

Additional information

Weight 55 kg
Dimensions 55 × 63 × 68 cm
Modelo

YR55, YR55-1, YR55-2, YR55-3
