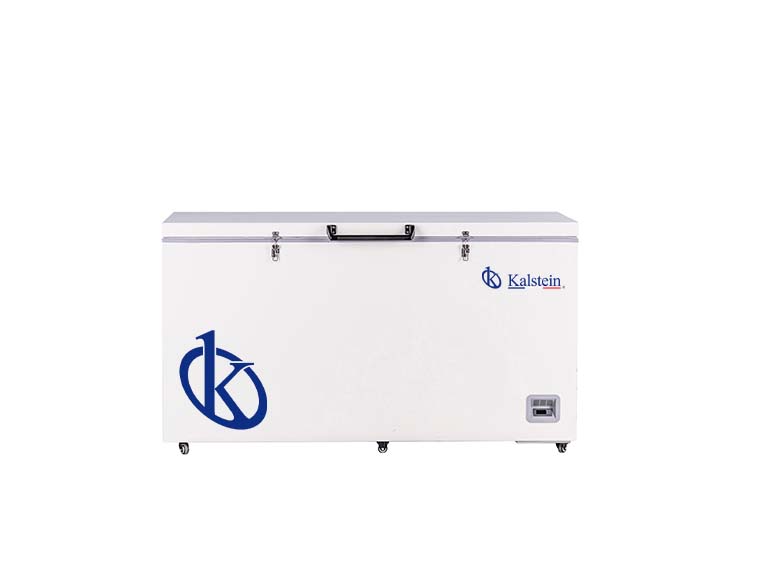

YR05318 Sprayed Plate Steel Medical Chest Freezer

Manufacturer: Kalstein

Description

485L Chest Medical Freezer From China Made Of Sprayed Plate Steel For Hospital And Laboratory Use

Promed Medical Freezers are designed to store bio-samples .
Safety
  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
  • Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm
  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
  • Keyboard lock, password protection to avoid set parameter randomly.
  • Wide available voltage range: 198V~242V.
Humanized design
  • 4 casters,2 casters with stopper for easy moving and fixation.
  • 1 Standard test hole(25mm),convenient for temperature monitoring.
Features
  • Wide temperature range :10โ„ƒ~32โ„ƒambient temperature can reach -10โ„ƒ๏ฝž-25โ„ƒ
  • Accurate Temperature control technology to make the temperature maintain-10โ„ƒ๏ฝž-25โ„ƒand accuracy 0.1 ยฐC.
  • SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.
  • High-density polyurethane foam.
Certificate
  • ISO14001.ISO9001.ISO13485.ISO45001
  • FDA List and CE
Warranty
  • 1 year free spare parts and remote technical support.
Special
  • 4 visual and audible alarms. 1 Standard test hole(25mm
Technical Specifications
Model YR05318
Performance
Temperature Range -10~-25ยฐC
Ambient Temperature +10~+32ยฐC
Controller Microprocessor
Display Digital Display
Refrigeration System
Compressor/Brand 1
/CUBIGEL
Refrigerant R290
Cooling Type Direct cooling
Defrost Type Manual
Electrical Data
Power Supply(V/Hz) 220~240V/50~60;115/60
Rated Power(W) 295
Electrical Current(A) 2.45
Power Consumption 3.45 kWh/24h
Dimensions
Capacity 485L/17.12 cu.ft
Interior Size(W*D*H) 1455*525*665mm
Exterior Size(W*D*H) 1655ร—755ร—915mm
Package Size(W*D*H) 1710ร—885ร—1020mm
N.t./G.t.(approx) 124/138KG
Loading Qty(20’/40’/40’H) 12/26/26
Alarm
High/Low Temperature Y
Sensor Error Y
Power Failure Y
Accessories
Caster 6
Remote alarm port /
Test hole 1/25MM

Additional information

Weight 160 kg
Dimensions 175 × 87 × 111,5 cm
