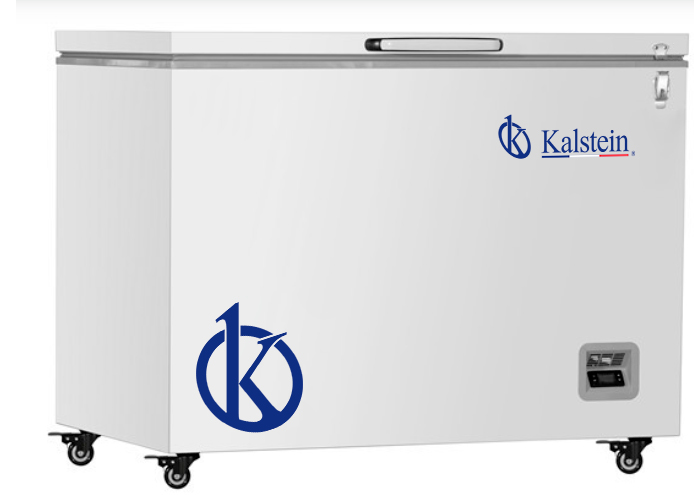

Chest Freezer YR05103

Manufacturer: Kalstein

Description

Multiple malfunction alarms to detect high and low temperature,sensor error, power off, temperature controller malfunction, door ajar alarm. accurate microprocessor control systems,excellent air cooling system and professional refrigerant system maintains stored medical under perfect performance.

Key Points
  • Microprocessor control, adjustable temperature range: -25CºC to -40ºC
  • LED digital display and increment at 0.1ºC
  • High density CFC-Free urethane foam insulation.
Ergonomic Design
  • USB data logging and temperature recorder (optional).
  • Build-in lock with safety and beauty
  • Lockable caster design for customer to move as need
Protection
  • Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
  • Two types of alarm indications: audible buzzing and visual flashing light.
  • Corrosion proof cabinet interior design
Reliability
  • Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
  • LED digital display for clear observation,
  • Wide voltage tolerance design with applicable voltage range of 187-242V/AC
YR05103
Specificaitons
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 1.68
Noise(db) 52
Ambient temperature(ºC) 10~32ºC
Temperature range(ºC) ·-20~40ºC
Cooling system
Compressor brand/QTY CUBIGEL
Condenser Wire tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 150W
Current(A) 1.3A
Material
Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size
Capacity(L/cu.ft) 305/
NT./GT.(kg) 80/85
Exterior size(W*D*H)(mm) 1218X840X940
Interior size(W*D*H)(mm) 1000X520X665
Package size(W*D*H)(mm) 1295X842X1070
CBM 1.17
20GP/40GP/40HQ 22/46/46
Alarm
High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller failure Y
Power failure backup system(alarm) 12h
Castor Y
Test hole QTY/diameter 1
Other Certification ISO9001,13485,14001,CE

Additional information

Weight 110 kg
Dimensions 123 × 80 × 106 cm
