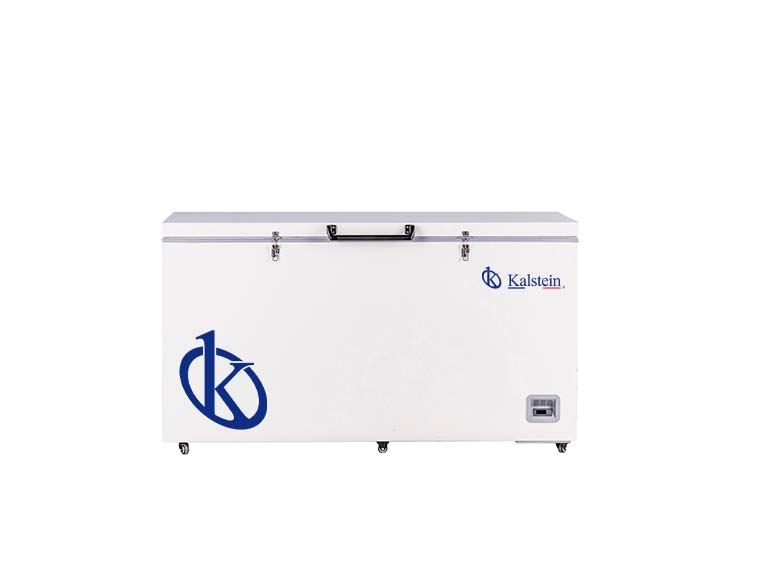

Ultra Low Temperature Chest Freezer -86C Self Cascade System YR05314

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

‘-86℃ Ultra low temperature Chest freezer for Lab/Hospital 485L

Characteristic Function
  • Safety door lock design to prevent abnormal door open
  • Wide voltage for AC187V-242V
  • Mute design for silent needed environment
  • Digital display with big screen, easy to check
  • Excellent thermal insulation performance with silicone door seal design(second door seal optional)
  • Mobile and fixable weel for move
Safety Guarantee
  • Temperature H/L alarm, sensor malfunction alarm, thermostat failure alarm
  • Audible and visible alarm
  • Keyboard lockable, password protection to prevent change running parameter randomly
  • Display running parameter with real-time monitoring to guarantee the stability of freezer
Refrigeration System
  • Imported brand compressor work with CFC-Free environmental rerigerant
  • High desity insulation foam layer with better heat preservation effect
  • Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption
Temperature Control Mode
  • With the international famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -40ºC to -86ºC.
  • High light digital display
  • H/L temperature alarm, the alarm temperature can be set as needed
  • PTC tempearture sensor, to make sure temperature accurately
Technical Specifications
Model YR05314
Specificaitons Shelf/drawer QTY /
Cooling Direct cooling
Defrost Manual
Refrigerant Mixed-gas
Power Consumption(kWh/24h) 11.5
Noise(db) 54.5
Ambient temperature(℃) 10~32℃
Temperature range(℃) -40~-86℃
Cooling system Compressor brand/QTY SECOP/1
Sensor PTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 670W
Current(A) 3.57
Material Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 485/17.12
NT./GT.(kg) 127/152.5
Exterior size(W*D*H)(mm) 1700*830*980
Interior size(W*D*H)(mm) 1455.5*525.2*674
Package size(W*D*H)(mm) 1780*910*1080
CBM 1.75
20GP/40GP/40HQ 6/13/13
Frozen Racks Racks 30(11X1,6X1)
Boxes (2 Inches) 300
Samples(2ml) 30000
Alarm High/low temperature Y
Power failure /
Abnormal voltage /
Sensor error Y
Filter screen check /
Thermostat failure Y
Low battery /
Condenser clean /
High ambient temperature /
Door ajar /
Power failure backup system(alarm) 12h
Accessories Castor Y
Inside door /
Test hole QTY/diameter 1/25MM
USB port /
Chart recorder /
Data logger Optional
Remote alarm port /
Optional CO2 back up system Optional
LN2 back up system Optional
Other Certification ISO.CE

Additional Information

Weight 162 kg
Dimensions 175 × 87 × 111,5 cm
