Manufacturer: Kalstein

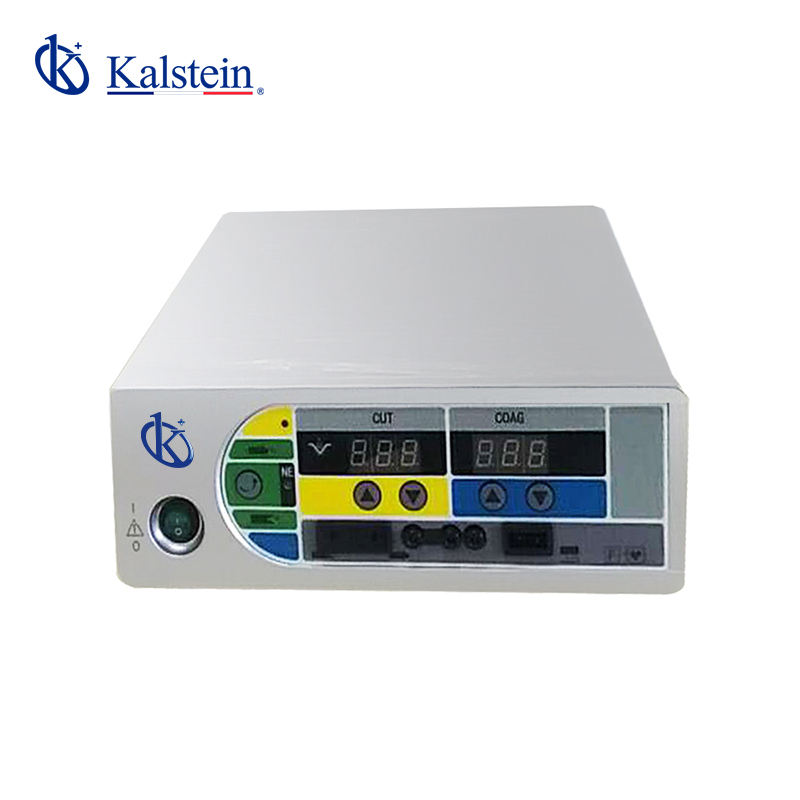

Electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and coagulation in clinics, offices and emergency rooms. YR electrosurgical generator offers a maximum power output of 400 watts.
YR well combines safety and effectiveness for a broad range of electrosurgical needs, such as General surgery, Cardiology, ENT surgery, Gastroenterology, Gynaecology, Laparoscopy, Neuro surgery, Plastic surgery, Thoracic surgery and Urology.
Model | YR02144 | |||
Monopolar | ||||
Cutting mode | Max. Output power (watts) | Load (ohms) | Open circuit Vp-p | Crest factor |
Pure | 400 watts | 500 Ω | 2,300v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 1 | 300 watts | 500 Ω | 2,700v | Sun Jan 02 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Mix 2 | 200 watts | 500 Ω | 3,200v | Mon May 02 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Mix 3 | 150 watts | 500 Ω | 3,700 v | Mon Jan 03 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Coagulation mode | ||||
Point | 120 watts | 500 Ω | 5,600v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Gentle | 120 watts | 500 Ω | 3,400 v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Spray | 120 watts | 500 Ω | 8,500 v | Tue Mar 08 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
Bipolar | ||||
Cutting mode | ||||
Standard | 70 watts | 200 Ω | 1,450v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Coagulation mode | ||||
Standard | 70 watts | 500 Ω | 240v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Precise | 70 watts | 200 Ω | 360v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
Connecting accessories and supplies | ||||
Finger pencil | two | |||
Foot switch pencil | one | |||
Patient return electrode | one | |||
Foot switch | one | |||
Ac power supply | one | |||
Potential equalization | one | |||
Power characteristic | ||||
Rate frequency | 512 kHz (110 / 240vAC, 60 / 50Hz) | |||
Isolated output | YES | |||
Quantitative visualization of the contact area | YES, for the «Split» type of neutral electrode | |||
Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flash if contact <20% | |||
Definition of Solid / Split Neutral Electrode | YES, the ‘Split’ or ‘Solid’ indicator light comes on | |||
Adjustable alarm volume | YES | |||
Operating duty cycle | 10 seconds ON, 30 seconds OFF | |||
Cooling method | Convection | |||
Regulation | ||||
Type According to EN 60601-1 | CF | |||
Protection class according to EN 60601-1 | class I | |||
Classification acc. According to MDD 93/42 / EEC | IIb | |||
Physical | ||||
Dimension (WxDxH) | 460 x 410 x 160 mm | |||
Weight | 11.2 kg |
Weight | 17,2 kg |
---|---|
Dimensions | 46 × 41 × 16 cm |
