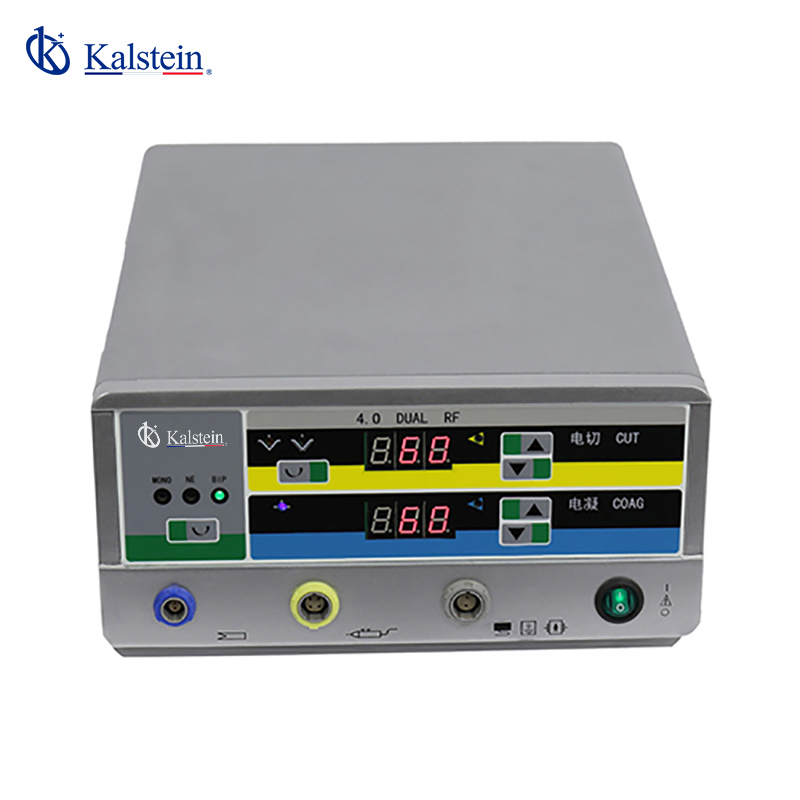

Electrosurgical Generators YR02147

Manufacturer: Kalstein

Product Description

YR electrosurgical generator series is a reliable electrosurgical unit for loop electrosurgical excision procedure (LEEP) in gynecology. With up to 150 watts maximum isolated output, automatic current monitoring and compensation functions, it can perform high precision cutting and coagulation with lower thermal damage risk.

  • The electrosurgical generator has four cutting and two coagulation output.
  • It provides automatic return electrode recognition function.
  • The electrosurgical generator offers digital diagnostic error codes.
  • It features isolated output, all floating.
  • Optional surgical smoke evacuation system is available for smoke or unpleasant odor removal purposes.

YR02147 is applied for gynecologic cervical surgery, plastic surgery and ENT surgery.

Model YR02147
Main unit
Base output frequency 512 KHz
Pure / mixed cutting power 0 ~ 150W
Pure cute waveform Continuous sine wave, max. Open voltage at 1700 V
Cut Waveform Mix 1 Sine Waveform 68% Duty Cycle, Max. open voltage at 1700V
Cut Waveform Mix 2 56% duty cycle sine waveform, max open voltage at 1600V
Cut Waveform Mix 3 32% Duty Cycle Sine Waveform, Max. open voltage at 2000 V
Clotting power 0 ~ 100W
Gentle clotting power 16% duty cycle, max. open voltage at 3300V
Spot coagulation waveform 16% duty cycle, maximum opening voltage at 4600V
Power supply 220 V / 50 Hz, rated current at 3.15 A
Current leakage <150 Ma
Safety standard EN 60601-1 and 60601-2-2
Smoke extractor
Volume 30 ~ 100L / min, 8 degrees adjustable
Internal filter efficiency > 99.999%
External filter efficiency > 99.97% with carbon filter for odor removal
Start mode With optional pedal or control
Power supply 220 V / 50 Hz, rated current at 3.15 A

Additional Information

Weight 15 kg
Dimensions 51,5 × 51,5 × 36 cm
