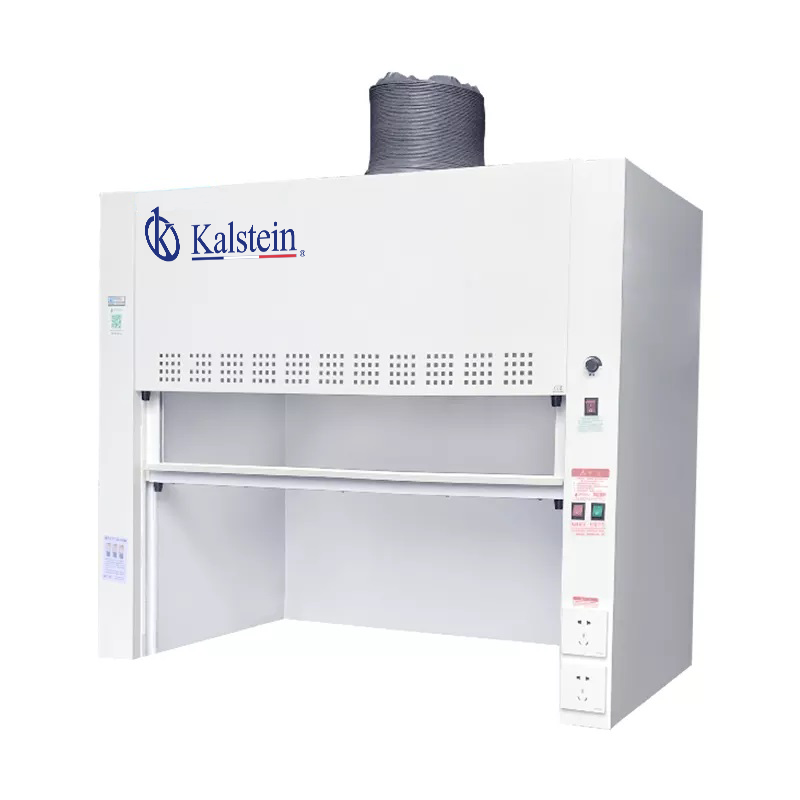

Epoxy-Coated Steel Basic Chemical Laboratory Fume Hood YR05808 // YR05812

ManufacturerKalstein

Description

  • Front Panel
  • Liner and guide baffles 5mm thick anti melamine board
  • Window: 5mm thick tempered glass
  • Laboratory Dedicated PP cup
  • Built-in drain pipe
  • Lower Side Plate
  • Lower Back Plate
  • Built In Axial Fan, Air Collector and anti-corrosion hose
  • With wind Regulator
  • Upper side panel (1.2mm thcik galvanized steel plate. epoxy sprayed outside)
  • Built in LED tube
  • Fan and lamp Switch
  • Multifunctional splash proof socket
  • 12.7m corrosion proof solid core, physical and chemical board, mesa
  • Door frames and door panels
Technical Specifications

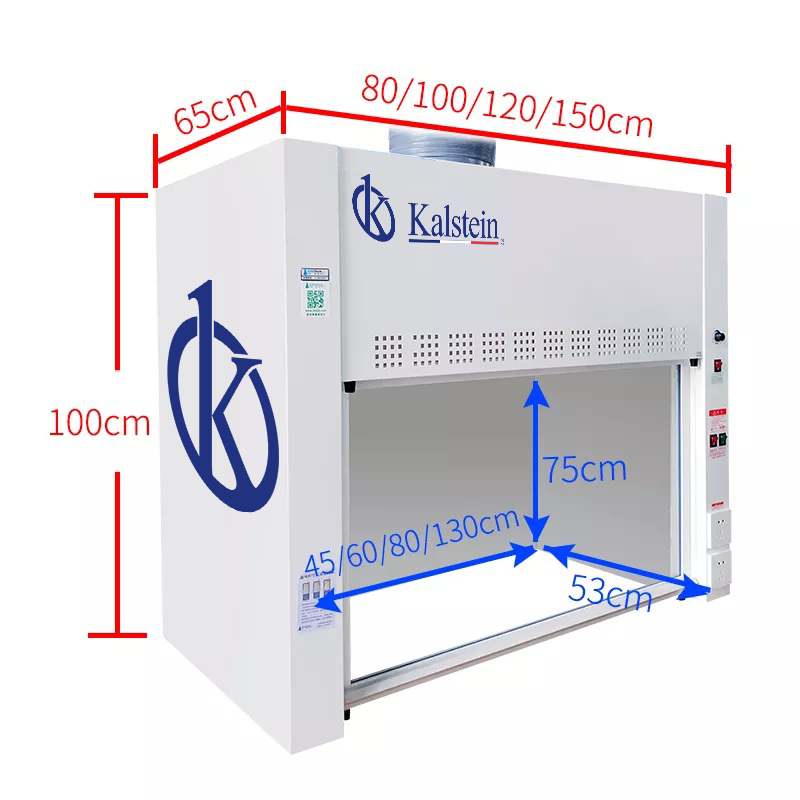

Model YR05808 YR05809 YR05810 YR05811 YR05812
External Size

(W*D*H) (mm)

650*650*

1000

800*650*

1000

1000*650*

1000

1000*650*

1000

1500*650*

1000

Internal Size

(W*D*H) (mm)

450*600*

750

600*600*

750

800*600*

750

1000*600*

750

1300*600*

750

Work Surface

 Height

800mm
Max Opening of

window

750mm
Air Velocity/Exhaust

air volume

0.4-0.6m/s,800-1000m³/h
Noise  ≤60dB
LED Lamp  10W*1
Blower  Built-in axial flow blower;Speed adjustable.
Front Window  Manual,5mm toughened glass,height adjustable.
Power Supply  AC220V±10%,50/60Hz;
Consumption  100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard

 Accessory

LED lamp,Built-in axial flow blower with speed adjustable, 10A socket, exhaust hose, faucet (with water), sink (with water)
Waterproof socket*2
3 meter PP duct, Diameter:250mm
Optional

Accessory

epoxy resin board or ceramic board, Water tap, Gas tap, Water Sink
Outer centrifugal blower (300W), resistant to strong acid, alkali.
Gross Weight   110 110 115 120 130

Additional information

Weight N/A
Dimensions N/A
Model

YR05808, YR05809, YR05810, YR05811, YR05812
