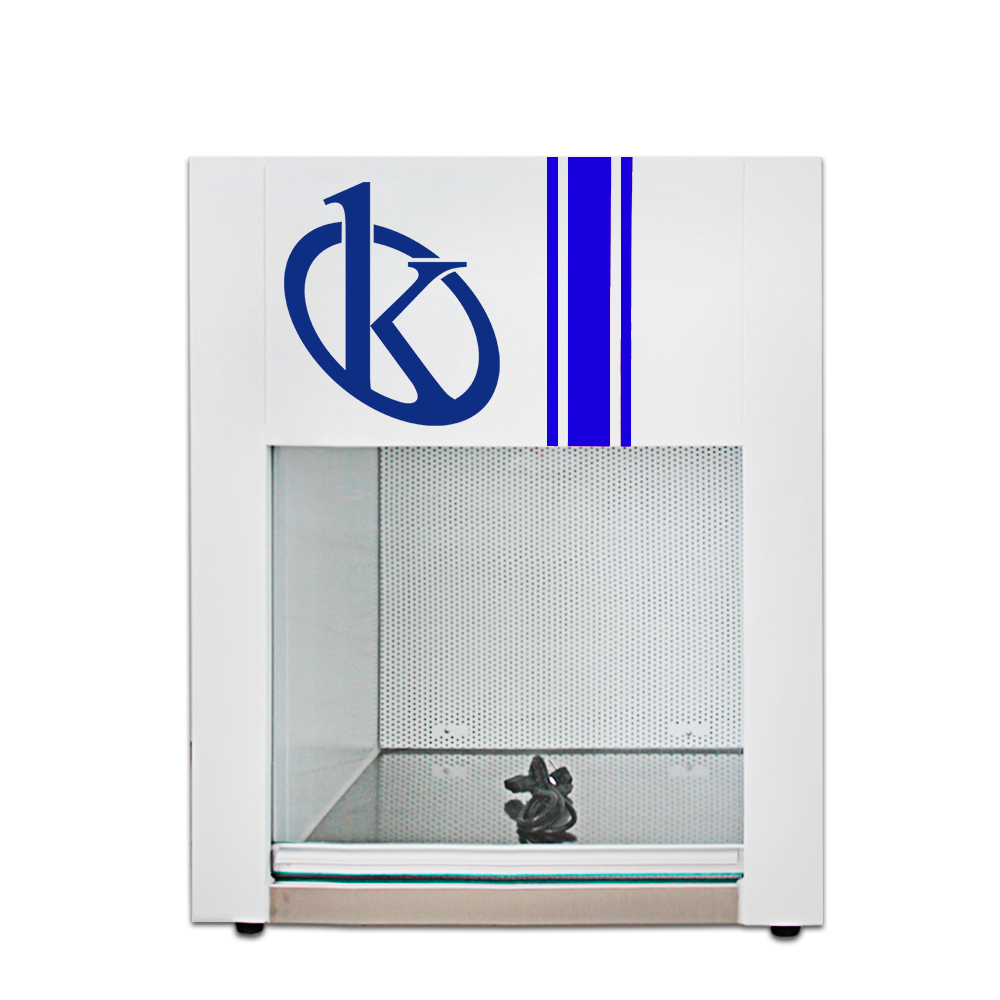

Horizontal Laminar Flow Cabinet YR05723

Manufacturer:ย Kalstein


The desk clean bench is a local purification unit used in the aseptic and dust-free clean environment in the fields of medical and health, biological engineering, scientific experiment and so on.

Product Features
  • The whole equipment adopts cold-rolled plate welding, and the surface is electrostatic sprayed.
  • The air supply mode of the equipment is divided into vertical air supply and horizontal air supply, quasi-closed glass damper, which is easy to operate.
  • Small and exquisite, it can be freely placed on the general workbench for operation, which is convenient for use in small studios.
  • The fan system is controlled by a remote switch fast and slow dual speed to ensure that the wind speed in the work area is always in an ideal state.
Technical Parameters
Modelย  YR05723
Cleanliness level Class 100@โ‰ฅ0.5ฮผM (US Federal 209E)
Number of Colonies โ‰ค0.5pcs/dishยทhour (ฮฆ90mm culture plate)
Average Wind Speed 0.25๏ฝž0.45m/s๏ผˆFast and slow๏ผ‰
Noise โ‰ค62dB๏ผˆA๏ผ‰
Vibration half peak โ‰ค5ฮผM๏ผˆxใ€yใ€zย direction๏ผ‰
Illuminance โ‰ฅ300Lx
Power Supply ACย single-phase 220V/50Hz
Working area


Overall dimension


High efficiency filter specification and quantity 470ร—455ร—38ร—1
Specification and quantity of fluorescent lamp/ultraviolet lamp 5Wร—1/10Wร—1

Additional information

Weight 70 kg
Dimensions 63 × 73 × 100 cm
